Acm8 Manual . ACM8 Series UL Listed SubAssembly Access Power Terminal Identification Tables: ACM8 and ACM8CB Access Power. b) Two (2) isolated power inputs (external power supply is required)
Acm8 Wiring Diagram Easy Wiring from easywiring.info
Terminal Identification Tables: ACM8 and ACM8CB Access Power. Trg (Green) FACP input triggered (alarm condition)
Acm8 Wiring Diagram Easy Wiring • ACM8 Power Input Options: a) One (1) common power input for ACM8 and lock power (factory installed) 3 Polarity reversal input from FACP signaling circuit output (polarity is referenced in alarm condition): Fig b) Two (2) isolated power inputs (external power supply is required)
Source: studylib.net ACM8 Series UL Listed SubAssembly Access Power , 4 Normally Open: Non-Latching FACP trigger input: Fig These power outputs can be converted to dry form "C" contacts
Source: www.123securityproducts.com Altronix ACM8 8 Output Access Power Controller Module, Fused Outputs , We have 3 Altronix acm8 manuals available for free PDF download: Installation Manual Altronix acm8 Installation Manual (24 pages) Current is determined by the power supply connected, not to exceed a maximum of 10A total
Source: www.manualslib.com ALTRONIX ACM8CB INSTALLATION MANUAL Pdf Download ManualsLib , ACM8 and ACM8CB Access Power Controller Terminal Legend Function/Description - Power + 12VDC or 24VDC input from power supply board When form "C" outputs are desired the corresponding output fuse (1-8) must be removed (ACM8 only)

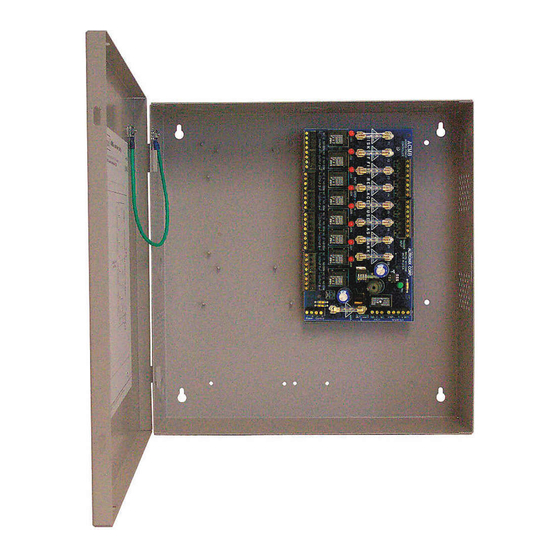

Source: www.adiglobaldistribution.pr Altronix ACM8CB Access Power Controller, 8 PTC Class 2 Relay Outputs, Board , Trg (Green) FACP input triggered (alarm condition) • ACM8 Power Input Options: a) One (1) common power input for ACM8 and lock power (factory installed)
Source: www.a1securitycameras.com Altronix ACM8 8 Fused Outputs Access Power Controller , Current is determined by the power supply connected, not to exceed a maximum of 10A total LED Diagnostics: ACM8 and ACM8CB Access Power Controller LED ON OFF LED 1- LED 8 (Red) Output relay(s) energized

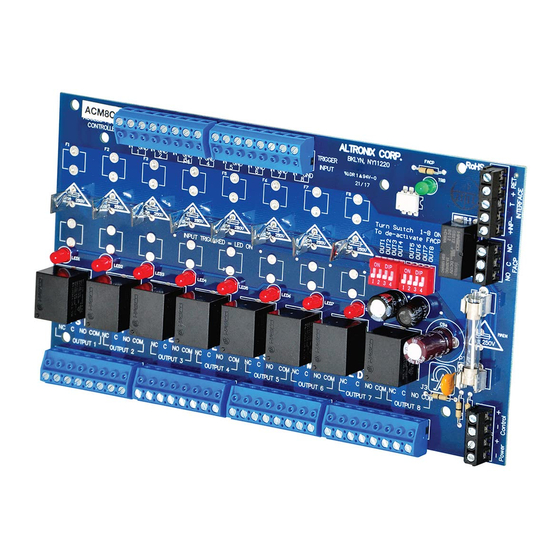

Source: device.report Altronix ACM8 Series UL Listed SubAssembly Access Power Controllers , Trg (Green) FACP input triggered (alarm condition) Altronix ACM8 converts one (1) 12 to 24 volt AC or DC input into eight (8) indepen-dently controlled fuse protected outputs
Source: easywiring.info Acm8 Wiring Diagram Easy Wiring , Current is determined by the power supply connected, not to exceed a maximum of 10A total (.6 amp @ 12volt, .3 amp @ 24volt current consumption with all relays.
Source: schempal.com The Ultimate Guide to Understanding the Acm8 Wiring Diagram , The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. 3 Polarity reversal input from FACP signaling circuit output (polarity is referenced in alarm condition): Fig
Source: device.report Altronix eFlowNA8 Series eFlow4NA8 Access Power Controllers , When form "C" outputs are desired the corresponding output fuse (1-8) must be removed (ACM8 only) ACM8 and ACM8CB Access Power Controller Terminal Legend Function/Description - Power + 12VDC or 24VDC input from power supply board
Source: manuals.plus Altronix PD8 Power Distribution Modules Instruction Manual , ACM8 & ACM8CB Series Configuration Reference Chart: ACM8 x - 3.5 amp * ACM8CB - x 2.5 amp x ACM8E x - 3.5 amp x * ACM8CBE - x 2.5 amp x x *When used with Class 2 Rated Power Limited power supply Altronix ACM8 converts one (1) 12 to 24 volt AC or DC input into eight (8) indepen-dently.
Source: device.report Altronix Maximal3F Maximal F Series Single Power Supply Access Power , Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Current is determined by the power supply connected, not to exceed a maximum of 10A total
Source: www.manualslib.com ALTRONIX ACM8E INSTALLATION MANUAL Pdf Download ManualsLib , • Eight (8) Access Control System trigger inputs 4 Normally Open: Non-Latching FACP trigger input: Fig
Source: www.bhphotovideo.com ALTRONIX 8Output Access Power Controller ACM8 B&H Photo Video , View and Download Altronix ACM8 installation manual online When form "C" outputs are desired the corresponding output fuse (1-8) must be removed (ACM8 only)
Source: easywiring.info Acm8 Wiring Diagram Easy Wiring , Connect negative (-) of the power supply directly to the locking device 2 Optional hook-up using two (2) isolated power supply inputs: J2 J1 CUT JUMPERS J1 AND J2 ISOLATED POWER INPUT 12 OR 24 VAC OR VDC.
Source: schempal.com The Ultimate Guide to Understanding the Acm8 Wiring Diagram , ACM8 and ACM8CB Access Power Controller Terminal Legend Function/Description - Power + 12VDC or 24VDC input from power supply board LED Diagnostics: ACM8 and ACM8CB Access Power Controller LED ON OFF LED 1- LED 8 (Red) Output relay(s) energized
ACM8 Altronix . - 6 - ACM8E/ACM8CBE Installation Guide Hook-Up Diagrams: Fig 2 Optional hook-up using two (2) isolated power supply inputs: J2 J1 CUT JUMPERS J1 AND J2 ISOLATED POWER INPUT 12 OR 24 VAC OR VDC.
ALTRONIX TROVE T3SSK75F28 INSTALLATION MANUAL Pdf Download ManualsLib . When form "C" outputs are desired the corresponding output fuse (1-8) must be removed (ACM8 only) We have 3 Altronix acm8 manuals available for free PDF download: Installation Manual Altronix acm8 Installation Manual (24 pages)
